Çelik Dişli Seti (0,8 Modül - 6,42:1 Düşürme)

Ürün Kodu : 15911
Barkod : 9098210001178 Marka : Jsumo
1.130,60 TL + KDV
Paylaş:
Kampanya
  • Ürün Özellikleri
  • Yorumlar (0)
  • Teslimat Koşulları
  • Tavsiye Et
  • Suitable for usage with Maxon motors.

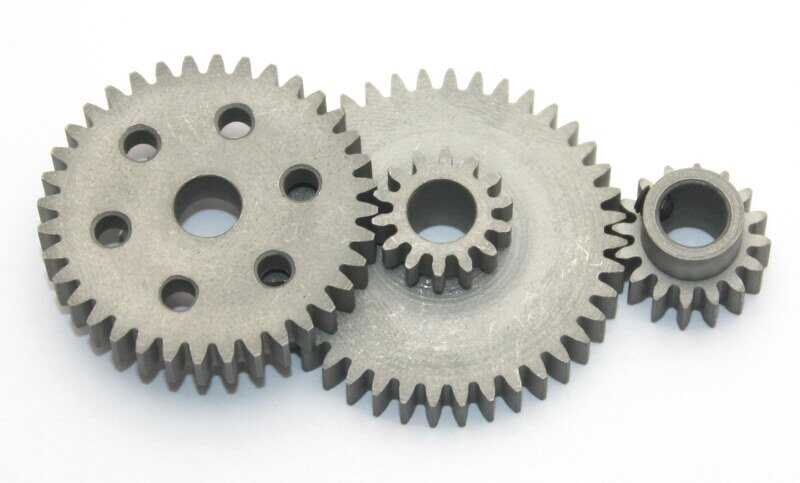

    Presicion machined 0,8 module gear set.
    Total reduction is 6,42:1 . Bundle includes 3 gears for 2 stage.
    Motor Pinion – 16 Tooth
    Concentric gear – 40-14 Tooth
    Wheel gear – 36 toothnbsp;

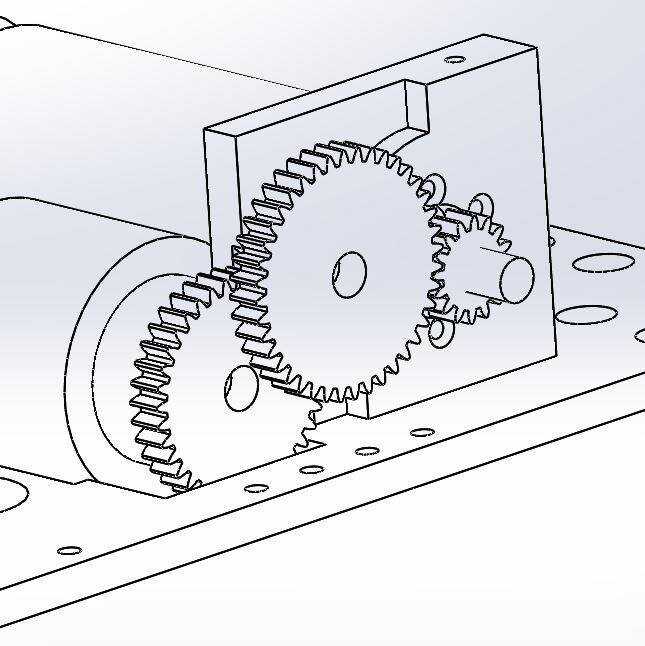

    And gear sizes for estimating gearbox design:
    • Wheel Gear: 30,5 mm Diameter, 5mm Thickness.
    • nbsp;Pinion Gear: 14,2 mm Diameter, 11,5mm Thicknessnbsp;
    • Concentric Gear: 12,6 mm Diameter, 5,2mm Thckness (Small One), 33,6mm Diameter, 5mm Thickness (Big One)
    By clicking add to cart at that page you can buy the bundle with discounted price . At bottom you can find gear pages.
